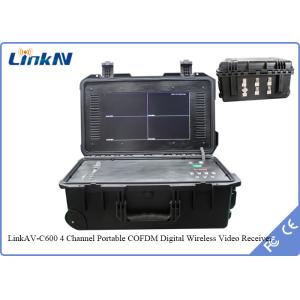

Hottest COFDM HDMI Wireless Portable Video Receiver With N Female RF Interface
Introduction of COFDM portable video receiver:
This kind of receiver can receive video transmission from 4 transmitters in one time.
- RF Bandwidth: 1.25/2.5/6/7/8MHz(upon request)
- Encryption Method: 256 - bit AES (can set user's password)
- Video Input: CVBS:NTSC,PAL ; HDMI: 1920 x1080p, 30 frames
- Video Compression: H.264
- RFI RF interface: N female head
- Audio Interface: HDMI: 1920 x1080p, 30 frames
- External(can built-in)Battery:DC12V/3.1~4.2A
- With 15.6-inch LED screen, real time monitoring the 4 way image ;
- Enable remote monitoring and control of PTZ;
Product Features:
1. Applied with modulation, three-proof, low power consumption design;
2. Four way wireless SD or HDMI integrated surveillance system;
3. Support local video storage;
4. Support TCP/IP/UDP internet protocols
5. Support 4 channels standard definition video preview
6. Support multiple USB interfaced human-computer interaction
7. Stable features, high receiving sensitivity, adjustable power
8. Support 64/128 bits AES encryption
Parameters:
| Transmission Characteristics |
| Modulation Type |
QPSK(4QAM), 16QAM, 64QAM |
| Working Frequency |
46~860 MHz (adjustable ) |
| RF Bandwidth |
1.25/2.5/6/7/8MHz |
| FEC (forward error correction ) |
1/2 2/3 3/4 7/8 |
| Guard Interval |
1/32 1/16 1/8 1/4 |
| Data Characteristics |
| Video Output |
CVBS:NTSC,PAL self-adaptive |
| HDMI(1080P,1080i,720P,720i) |
| Video Decoding |
MPEG-2 / H.264 |
| Audio Interface |
4C Navigation dead end |
| RF Interface |
N F head |
| Storage Interface |
USB |
| Parameter Control Method |
Via LED display panel |
| Encryption Method |
128 - bit AES (can set user’s password) |
| Electrical Characteristics |
| Power Supply |
DC 12V |
| Lithium Battery |
built-in 18Ah lithium battery,work last min 4 hours |
| Working current |
3.1~4.2A |
| Physical Characteristics |
| Dimension |
570*350*220 mm |
